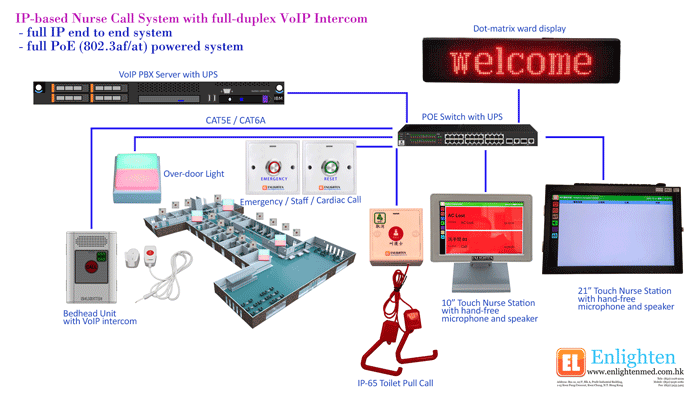

IP-based Nurse Call System
IP-based Nurse Call System

IP-Based Nurse Call System Enhances Patient Satisfaction

  • IP nurse call is a communication and management system equipped with IP technology. Patient safety and satisfaction is improved with the provision of alarm devices and real-time communication.

  • Our IP-based nurse call system is low cost and most reliable solution. It is especially suitable for hospital usage due to no RF interference. It is easy to install, intuitive to use and flexible. It can be scaled to suit the needs of your healthcare institution

  • User can import different floor maps, select alert sounds and tune the volume without the help from programmer. This system follows the design guidelines incorporated in safety standards like CE, FCC, HTM 08-03, HKCA-1078 and UKCA. It is fully supervised to provide a reliable solution.

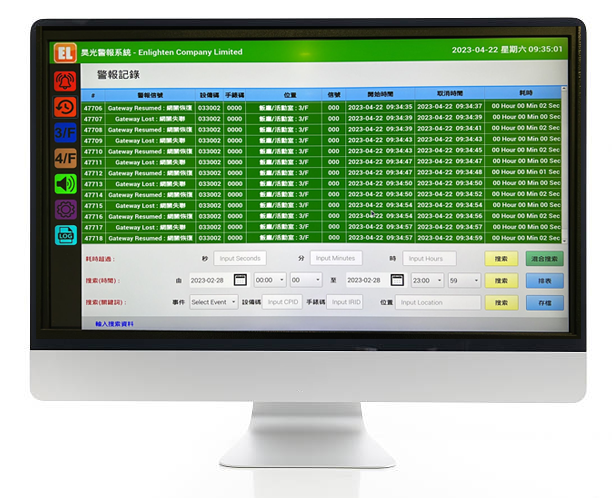

    • IP-based Touch Nurse Station

    Nurse Station

    • Model: EL-CDU-IP
    • Input power: DC 12V@3A / PoE(802.3af)
    • Protocol: TCP-IP
    • VoIP protocol: SIP
    • Environment Noise Cancellation
    • Echo Cancellation
    • Hand-free microphone and speaker
    • Wall-mount or desktop
    • Call history logs with colorful performance indicator
    • Pocsage pager output (optional)
    • User floor map editable
    • User configurable sound tracks for different alarms
    • Remote accessible
    • Duplicates all call information in real-time to multiple locations such as corridors and supervisor room
    • CE certified

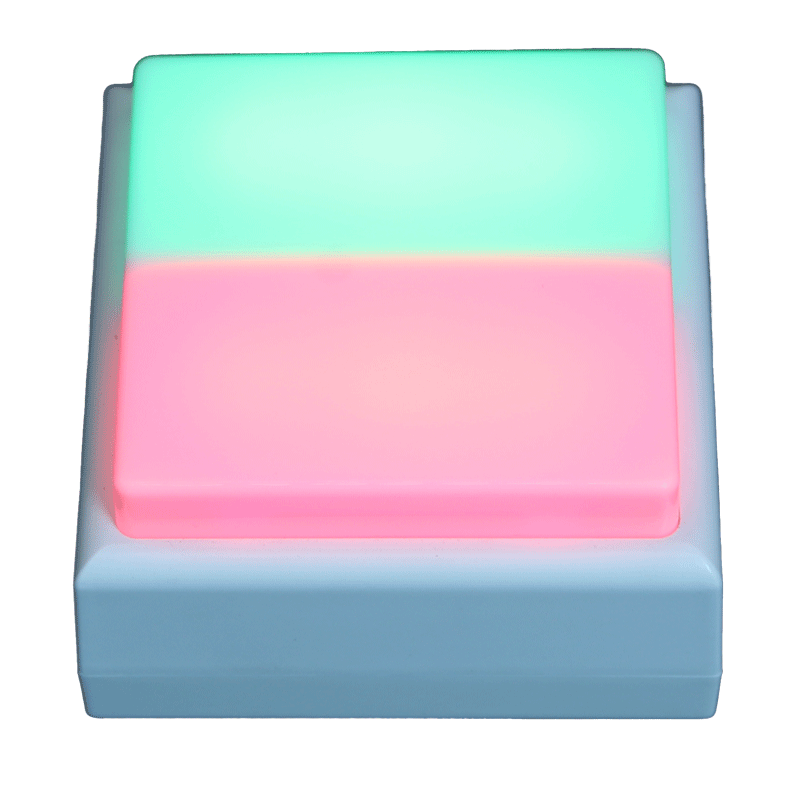

    IP-based Over-door Light Unit

    Over door light corridor light
    • Model: EL-WHB-IP
    • Input power: PoE(802.3af)
    • Adjustable audible alert
    • Optional LED colour: Amber, Red, Green and Blue
    • Super bright LED arrays
    • Good to view from sides
    • Protocol: TCP-IP
    • CE certified

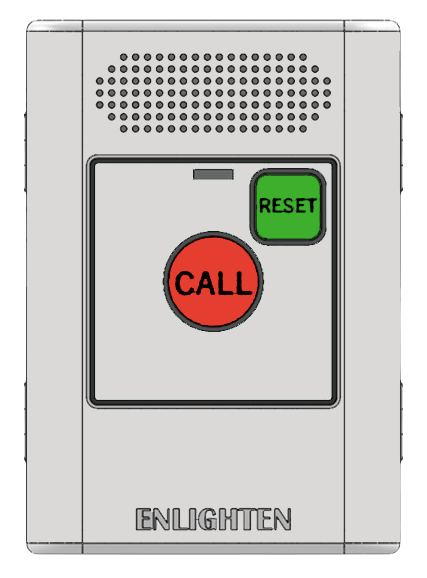

    IP-based Bedhead Call Point

    VOIP nurse call
    • Model: EL-WCP-IP
    • Input power: PoE(802.3af)
    • Protocol: TCP-IP
    • VoIP protocol: SIP
    • Environment Noise Cancellation
    • Echo Cancellation
    • IP-65 water-proof
    • Red re-assurance visible LED
    • Big alarm button with Reset
    • CE certified

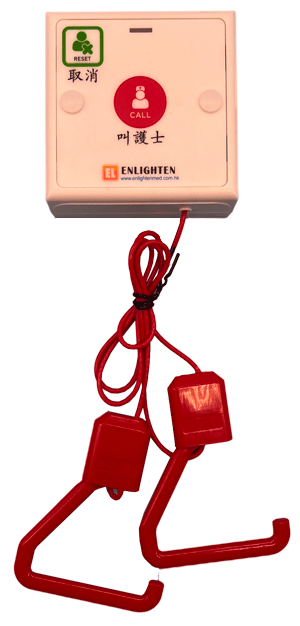

    IP-based Bathroom Pull Call

    Toilet Bathroom Pull Cord
    • Model: EL-CPC-IP
    • Input power: PoE(802.3af)
    • Protocol: TCP-IP
    • Red re-assurance LED
    • Pull string length: 1.5M
    • Anti-suffocation break-away
    • IP-65 water-proof
    • Easy wipe clean silicone string
    • Big alarm button with Reset
    • CE certified

    IP-based Over-door Light Unit

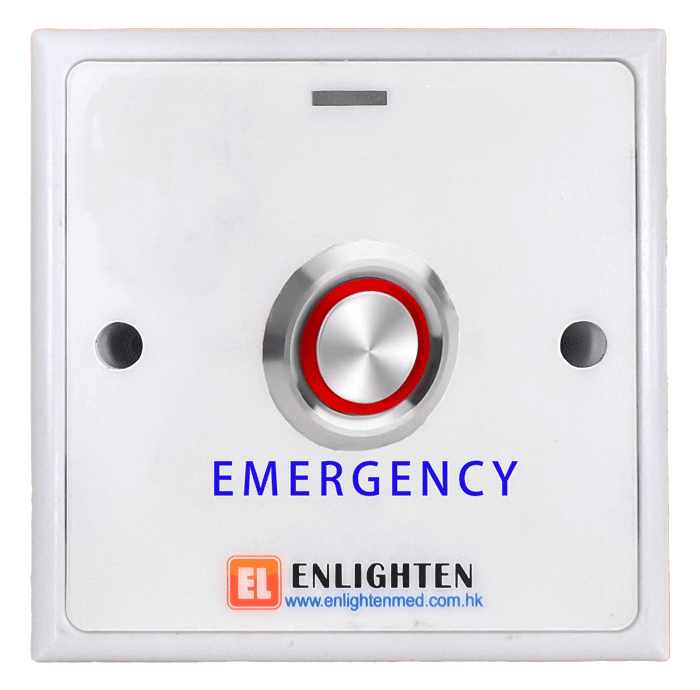

    Emergency Call Button

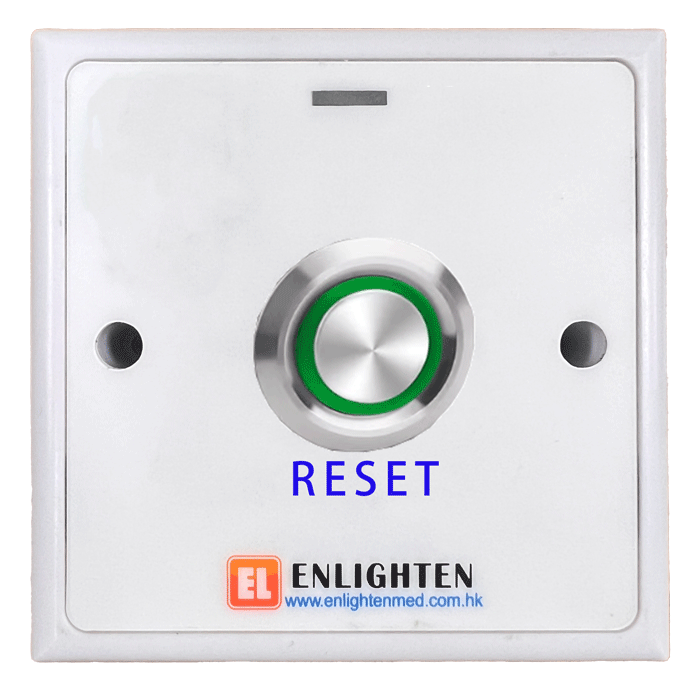

    Reset Button
    • Model: EL-EMC-IP
    • Input power: PoE(802.3af)
    • Protocol: TCP-IP
    • Buzzer audible alert with volume adjust
    • Push-Pull to trigger button
    • Red re-assurance visible LED
    • CE certified

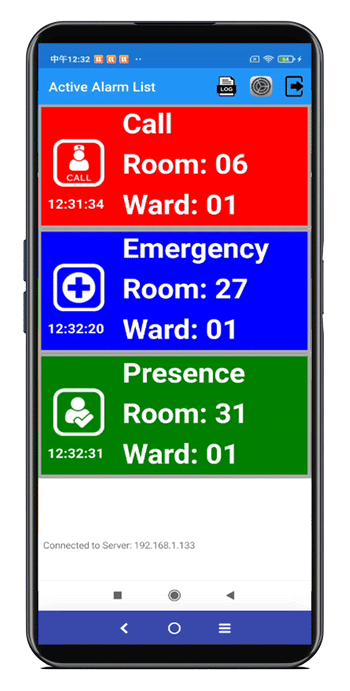

    Smart Nurse Call Apps

    nurse call apps
    • Support OS: Android V.10 or above
    • User login security
    • Support add new user account
    • Full alarm history log
    • Support filter setting for different wards and rooms
    • Large and user friendly user interface
    • Support RFID (NFC) tag to reset / staff presence
    • Protocol: WiFi / TCP-IP
    IP-based nurse call catalog

    Product List

    nurse station over-door alert intercom bedhead emergency call toilet pull call
    Name 10"/21" Nurse Call Station(Touch) IP-based Over-door Light IP-based Nurse Call IP-based Emergency Call IP-based Toilet Pull Call
    Part No. EL-CDU-IP EL-WHB-IP EL-WCP-IP EL-EMC-IP EL-CPC-IP
    Size(mm) 275(W)x180(H)x45(D) 86(W)x86(H)x50(D) 100(W)x143(H)x31(D) 86(W)x86(H)x36(D) 86(W)x86(H)x36(D)
    Power PoE(802.3af) PoE(802.3af) PoE(802.3af) PoE(802.3af) PoE(802.3af)
    Protocol TCP-IP TCP-IP TCP-IP TCP-IP TCP-IP
    IP Rating - - IP-65 IP-65 IP-65
    Device Lost Yes Yes Yes Yes Yes
    VoIP SIP - SIP - -
    Echo Cancellation Yes - Yes - -
    Certificates CE CE CE CE CE
