What is wireless nurse call system?

  • Wireless nurse call systems give patients access to timely care, especially in dire situations where response time decides the odds in the battle of life and death. The wireless nurse call system alerts the medical staff and sends them the exact location of the patient.
  • What are the benefits of adopting a wireless nurse call system?

    #1 Enhanced Mobility & Flexibility

  • No Physical Constraints: Nurses and caregivers can receive calls anywhere within the facility via wireless devices (like pagers, or smartphones).
  • Real-Time Alerts: Immediate notifications ensure faster response times, even if staff are away from the nurses' station.
  • #2 Easy Installation & Scalability

  • No Wiring Needed: Reduces installation costs and disruption to hospital operations.
  • Expandable: Easily add new call points or devices without complex rewiring.
  • #3 Improved Patient Safety & Satisfaction

  • Faster Response Times: Wireless signals transmit instantly, reducing delays in emergency situations.
  • Two-Way Communication: Some systems allow patients and staff to speak directly (via intercom or mobile devices).
  • Voice recognition: Some device allow voice trigger command for some disable patients or elderly
  • #4 Cost-Effective & Low Maintenance

  • Reduced Infrastructure Costs: No need for extensive cabling.
  • Remote Updates & Troubleshooting: Software-based systems can be updated without physical modifications.
  • #5 Better Staff Efficiency & Workflow

  • Automated Prioritization: High-priority calls (e.g., emergencies) can be escalated automatically.
  • Tracking & Reporting: Monitors response times and call logs for performance analysis.
  • #6 Adaptability for Different Healthcare Setting

  • Suitable for hospitals, nursing homes, assisted living facilities, and home care.
  • Can be used for fall detection, wander prevention, and remote monitoring.
  • #7 Integration with Other Systems

  • Works with EHR & Smart Devices: Can link with electronic health records (EHR), RTLS (Real-Time Location Systems), and IoT devices for better workflow automation.
  • Alerts via Multiple Channels: Notifications can be sent to smartphones, tablets, or hospital communication systems.
  • #8 Future-Proof Technology

  • Supports Wi-Fi, Bluetooth, or RF-based communication, making it compatible with modern smart hospital infrastructures.

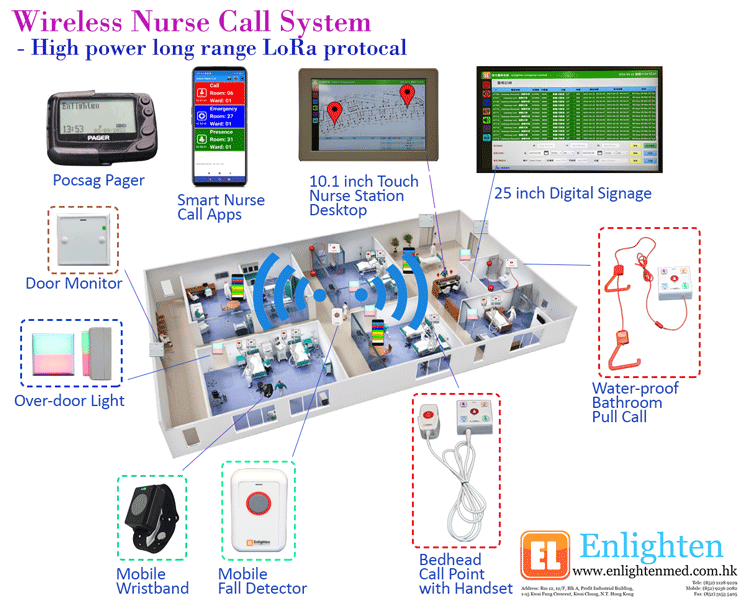

  • Enlighten smart wireless nurse call system

    banner1

  • Our wireless nurse call systems is an inexpensive solution for senior living properties, clinics, anywhere someone needs to press a help button or pull a bathroom emergency cord for help. The 10" Touch Nurse Station displays alarms as well as battery and operation of up to hundreds of wireless transmitters, pull stations, personal pendants, door alarms, bed exit or other wireless device of your choice. Send those alerts to a staff pocket pager, LED reader-board, or corridor light if desired.
  • By making use of latest wireless technology - LoRa. Our communication range could be up to 10 km. The low power consumption characteristics, providing up to 3 years of battery life.
  • Our SAAS is easy to use and configurable. User can set different logo, floor map, alarm sound track, volume, day-night mode, zones code and so on.
  • Our products follow the design guidelines incorporated in safety standards like CE (Europe), HKCA-1078, UL, FCC (US) and UKCA. It is fully supervised to provide a reliable solution.

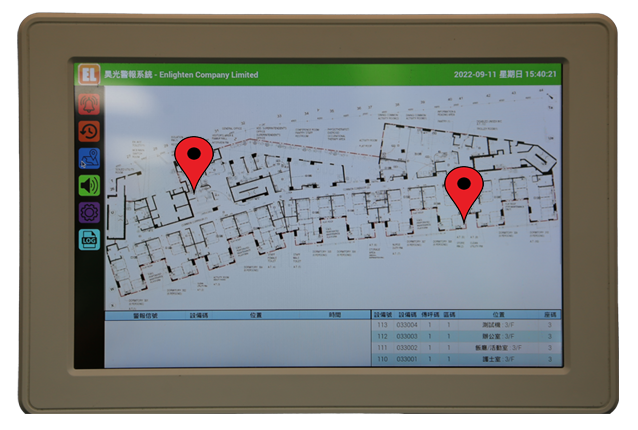

  • 10" Touch Nurse Station

    CDU with spot.png CDU-3.gif

    • Model: EL-CDU-POE
    • Input power: DC 12V@2A / PoE
    • Rechargeable backup: 1.5 hours
    • Wall-mount or desktop
    • Protocol: LoRa / TCP-IP / Pocsag
    • Call history logs with colorful performance indicator
    • Pocsage pager output (optional)
    • User floor map editable
    • User configurable sound tracks for different alarms
    • Remote accessible
    • 4 alarm priority levels (Emergency, Alarm, Presence and Assistance)
    • Duplicates all call information in real-time to multiple locations such as corridors and supervisor room
    • CE and UKCA certified

    Wireless Fall Prevention Pads

    Chair bed floor pads.gif
    • Model: EL-WPX
    • Replaceable battery: CR2477 x 2 (2000mAH)
    • Battery life: 1 years (10 calls per day)
    • Low battery alert
    • Red re-assurance LED visible alert
    • Tx Distance: 1km (open)
    • Protocol: LoRa
    • CE certified

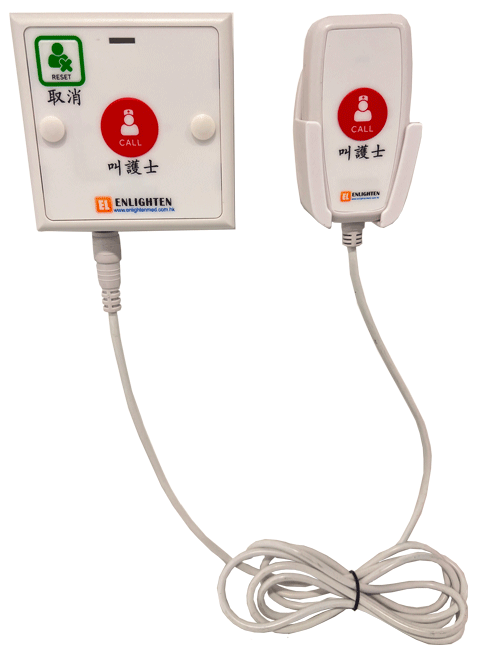

    Wireless Emergency Call Point

    Bedhead Call Point with handset.gif
    • Model: EL-WCP
    • Replaceable battery: ER18505 (4000 mAH)
    • Battery life: 3 years (10 calls per day)
    • Low battery alert
    • Red and Green re-assurance LED visible alert
    • Buzzer audible alert
    • 6.35mm mono Input Jack for handset / bed pad / floor map
    • Tx Distance: 1km (open)
    • Protocol: LoRa
    • 5 big and colorful buttons (Emergency, Alarm, Presence, Assistance and Reset)
    • CE and UKCA certified

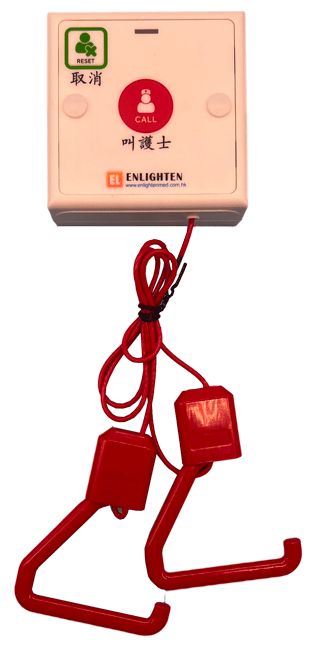

    Wireless Toilet Pull Call

    • Model: EL-CPC
    • Replaceable battery: ER18505 (4000 mAH)
    • Battery life: 3 years (10 calls per day)
    • Low battery alert
    • Red and Green re-assurance LED visible alert
    • Buzzer audible alert
    • Easy wipe clean silicone string
    • Tx Distance: 1km (open)
    • Protocol: LoRa
    • Pull string length: 1.5m
    • Anti-suffocation break-away
    • IP65 water-proof design
    • CE and UKCA certified

    Wireless Over-door Light Unit

    Over-door light 2.gif
    Over-door light 1.gif
    • Model: EL-WLU
    • Input power: DC 5V@1A
    • Rechargeable backup: 4 hours (1500 mAH)
    • Adjustable audible alert
    • Low battery alert
    • AC lost alert
    • Super bright LED arrays
    • Good to view from sides
    • Tx Distance: 1km (open)
    • Protocol: LoRa
    • CE and UKCA safety certified

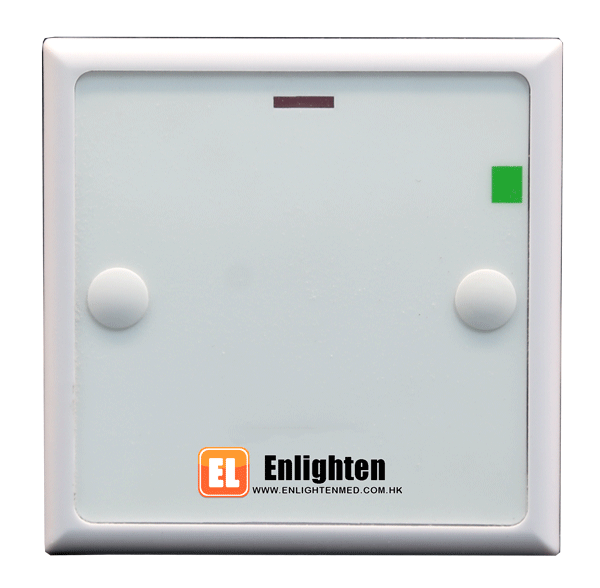

    Wireless Door Monitor

    Door Monitor.gif
    • Model: EL-DOOR
    • Replaceable battery: ER18505 (4000 mAH)
    • Battery life: 3 years (10 calls per day)
    • Red and Green re-assurance LED visible alert
    • Buzzer audible alert
    • Low battery alert
    • Support by-pass mode with 20 seconds timer
    • Tx Distance: 1km (open)
    • Protocol: LoRa
    • CE and UKCA certified

    Wireless Wristband

    Wristband Pannic Button 1.gif
    • Model: EL-IRX
    • Replaceable battery: CR2477 (1000 mAH)
    • Battery life: 1 years (10 calls per day)
    • Green re-assurance LED visible alert
    • Low battery alert
    • Tx Distance: 1km (open)
    • Protocol: LoRa / IR
    • Work with EL-WCP to provide location information
    • IP65 water-proof
    • CE and UKCA certified

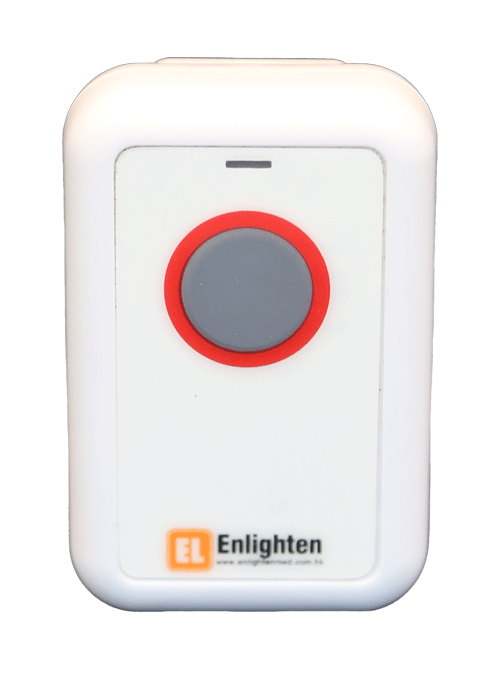

    Wireless Fall Detector

    Portable Fall Prevent 1.gif
    • Model: EL-IRF
    • Replaceable battery: CR2477 (1000 mAH)
    • Battery life: 1 years (10 calls per day)
    • Red and Green re-assurance LED visible alert
    • Equipped with fall sensor
    • Buzzer audible alert
    • Low battery alert
    • Tx Distance: 1km (open)
    • Protocol: LoRa / IR
    • Work with EL-WCP to provide location information
    • IP65 water-proof design
    • CE and UKCA certified

    Smart Nurse Call Apps

    Android Alert Apps.gif
    • Model: EL-Apps
    • Support OS: Android V.10 or above
    • User login security
    • Support add new user account
    • Full alarm history log
    • Protocol: WiFi
    • Support filter setting for different wards and rooms
    • Large and user friendly user interface
    • Support RFID (NFC) tag to reset / staff presence

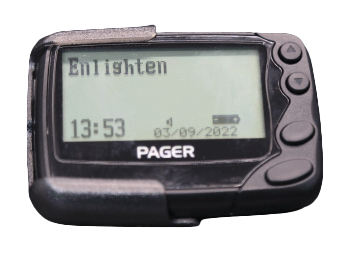

    Pocsag Pager

    Pocsag Pager.gif
    • Model: EL-PSP
    • Portable, easy-to-use, alphanumeric pager
    • 2 or 4 line display
    • Protocol: Pocsag
    • Over 2000 hours of battery life depending on use
    • Specially designed durable plastic casing
    • Programmable by hand or USB software
    • Vibrate and tone alert options
    • Comes with protective holster and clip lanyard




    Product List

    Name 10"Nurse Station(Touch) Wireless Over-door Light Wireless Nurse Call Wireless Toilet Pull Call Wireless Door Monitor Wireless Pad Transmitter Wireless Fall Pendant Wireless Wristband Portable Pager Pressure Pads
    Part No. EL-CDU-POE EL-WLU EL-WCP EL-CPC EL-DOOR EL-WPX EL-FALL EL-WTX EL-PAG EL-PADS
    Size(mm) 275(W)x180(H)x45(D) 86(W)x86(H)x50(D) 86(W)x86(H)x36(D) 86(W)x86(H)x36(D) 86(W)x86(H)x36(D) 60(W)x54(H)x14(D) 43(W)x66(H)x18(D) 32(W)x39(H)x15(D) 77(W)x53(H)x18(D) 10"x15"/20"x30"
    Power DC-12V / PoE DC-5V / PoE 4000mAh / PoE 4000mAh / PoE 4000mAh / PoE 2000mAh 1000mAh 1000mAh 1200mAh -
    Protocol LoRa/TCP-IP LoRa/TCP-IP LoRa/TCP-IP LoRa/TCP-IP LoRa/TCP-IP LoRa LoRa/IR LoRa/IR POCSAG -
    Batt. Life 2 hours (backup) 4 hours (backup) 3 years 3 years 3 years 2 years 1 years 1 years 1 year -
    Tx Range 1km (open) 1km (open) 1km (open) 1km (open) 1km (open) 1km (open) 1km (open) 1km (open) - -
    IP Rating - - IP-65 IP-65 IP-65 - IP-65 IP-65 - IP-65
    Low Batt. Alert Yes Yes Yes Yes Yes Yes Yes Yes Yes -
    AC Lost Yes Yes - - - - - - - -
    Device Lost Yes Yes Yes Yes Yes Yes Yes Yes - Yes
    Certificates CE & UKCA CE & UKCA CE & UKCA CE & UKCA CE & UKCA CE CE & UKCA CE & UKCA CE CE
